Product code:MB
Shank Diameter (mm) |
Part No. | Descriptions | Head Shapes | Dimensions | Grit | Maximum Rotation Speed (min-1) |
||||
Head Diameter (mm) |
Head Length (mm) |
Overall Length (mm) |
Angle (α°) |
Tip radius |
||||||
6 | MBHD4511 | ![]() |
Ball Nose Cylinder | 16 | 25 | 60 | - | R8.3 | 25 | 35,000 |
6 | MBKY4771 | ![]() |
Ball | 10 | 9 | 60 | - | - | 25 | 76,000 |
6 | MBTM5041 | ![]() |
Oval | 8 | 13 | 60 | - | R3.3 | 25 | 76,000 |

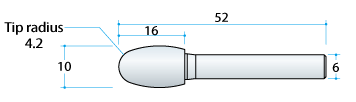

6 | MBTM5061 | ![]() |
Oval | 10 | 16 | 52 | - | R4.2 | 25 | 76,000 |
6 | MBTK5371 | ![]() |
Ball Nose Tree | 16 | 25 | 60 | - | R3.6 | 25 | 35,000 |
6 | MBTP6181 | ![]() |
Ball Nose Cone | 7 | 14 | 60 | 13° | R2.2 | 25 | 76,000 |
6 | MBTP6191 | ![]() |
Ball Nose Cone | 8 | 10 | 60 | 29° | R2.3 | 25 | 76,000 |
6 | MBTP6221 | ![]() |
Ball Nose Cone | 12 | 17 | 52 | 18° | R4.2 | 25 | 43,500 |
6 | MBTP6251 | ![]() |
Ball Nose Cone | 16 | 17 | 52 | 29° | R5.0 | 25 | 35,000 |
3 | MBHD4366 | ![]() |
Ball Nose Cylinder | 2 | 7 | 40 | - | R1.0 | 140 | 105,000 |
3 | MBHD4381 | ![]() |
Ball Nose Cylinder | 3 | 10 | 40 | - | R1.5 | 120 | 105,000 |
3 | MBHD4411 | ![]() |
Ball Nose Cylinder | 5 | 10 | 40 | - | R2.5 | 120 | 88,000 |
3 | MBKY4641 | ![]() |
Ball | 1 | 1 | 40 | - | - | 200 | 105,000 |
3 | MBKY4671 | ![]() |
Ball | 3 | 3 | 40 | - | - | 120 | 105,000 |
3 | MBKY4701 | ![]() |
Ball | 5 | 5 | 40 | - | - | 120 | 88,000 |
3 | MBTK5241 | ![]() |
Ball Nose Tree | 3 | 6 | 40 | - | R0.5 | 120 | 105,000 |
3 | MBTK5271 | ![]() |
Ball Nose Tree | 5 | 10 | 40 | - | R1.0 | 120 | 88,000 |
3 | MBTG5511 | ![]() |
Tree | 2 | 10 | 40 | 10° | - | 140 | 105,000 |
3 | MBTG5526 | ![]() |
Tree | 3 | 10 | 40 | 15° | - | 140 | 105,000 |
3 | MBTP6121 | ![]() |
Ball Nose Cone | 3 | 6 | 40 | 20° | R0.5 | 120 | 105,000 |
3 | MBTP6151 | ![]() |
Ball Nose Cone | 5 | 10 | 40 | 19° | R1.0 | 120 | 88,000 |
3 | MBGE6161 | ![]() |
Inverted Cone | 5 | 3 | 40 | 20° | - | 120 | 88,000 |
3 | MBRO6741 | ![]() |
Funnel | 5 | 4 | 40 | - | R1.5 | 140 | 88,000 |
Shank Diameter (mm) |
Part No. | Descriptions | Head Shapes | Head Diameter (mm) |
Head Length (mm) |
Overall Length (mm) |
Angle (α°) |
Tip radius |
Grit | Maximum Rotation Speed (min-1) |
Dimensions |
・The shapes not lited here, we accept small quantities as custom-made products.
Please contact our sales person for ball nosed cylinder bur with screw and flat cylindrical wheel.
