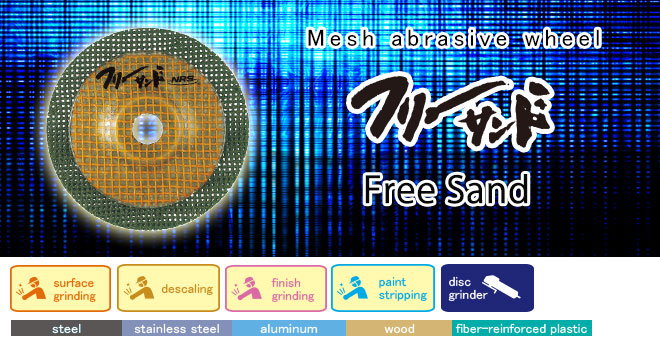

Mesh abrasive wheel・Free Sand

Features

  • Stack 2 to 5 discs to adjust its flexibility and stock removal.
  • Use mesh cloth as basic material to eliminate the clogging, heat damage and warp problem.
  • Conform to any shaped material according to its excellent flexibility.
  • By using our original glass cloth back up pad brings safety grinding at high speed with no loss of its flexibility.

Applications

  • Light grinding and polishing of steel, stainless steel, aluminum (including surface grinding, curve grinding, chamfering and finishing spot welding)

Specifications

Diameter
(mm)
Thickness
(mm)
Bore
(mm)
Grit Packing
Outer Box
(pcs×inner box)
Maximum
operation
speed
105 1 16 80・120 100pcs
(20pcsx5boxes)
72m/s
(4,300m/min)

Product Code

◆The unit of diameter, thickness and bore is the mm.
◆Each product lines are available in different sizes, please contact us.

Article


Working surface

Package and backup Pad




Backup Pad
Each innter box includes a backup pad.

Precautions

  • Always use backup pad.
